Lipo 3.7v lithium ion polymer battery 503759 1200mAh
Model:DTP523048 Max dimension:5.2*30*48(mm). Customizable PCM and connector, Wire length Get certificate:KC CB CE ROHS UL UN38.3 BIS Discharge cut-off voltage: 2.75V Maximum charging voltage: 4.2V

Lipo 3.7v lithium ion polymer battery 503759 1200mAh

  • Model:DTP503759

    Nominal voltage:3.7V

    Nominal capacity:1200mAh

    Max dimension:5.2*37.5*61(mm)

    Get certificate:KC CB CE ROHS UL UN38.3 BIS

Inquiry Now
  • Product Details
  • Items

    Parameter

    Battery modelDTP503759
    Nominal voltage3.7V
    Minimum capacity1200mAh(0.2C discharge)
    Charging voltage4.2V
    Discharging cut-off voltage3.0V
    Standard charging0.2C /4.2V
    Max charging1.0C /4.2V
    Standard discharging0.2C/3.0V
    Max discharging

    continuous discharge

    1.0C/3.0V

    non-continuous discharge

    2.0C/3.0V

    Shipment voltage≥3.85V

    Battery pack impedance

    ≤110mΩ
    Operating temperature

    Charging:    0°C ~ 45°C

    Discharging: -20°C ~60°C

    Storage (At 50% SOC and specified temp,

    recoverable capacity in % vs time )

    -10℃~25℃

    (12 months ≥85% )

    -10℃ ~45℃

    (6 months  ≥85% )

    -10℃~55℃

    (1 month   ≥90% )

    20±5℃ is the recommended storage temperature

    Visual Inspection

    There should not be any remarkable scratches, cracks,

    bolts, cauterization, deformations, swelling, leakage

    and so on the surface of the cell.

    Reference standard

    GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL164


    BATTERY PARAMETERS

    Model:DTP503759

    Max dimension:5.0*37*59(mm).

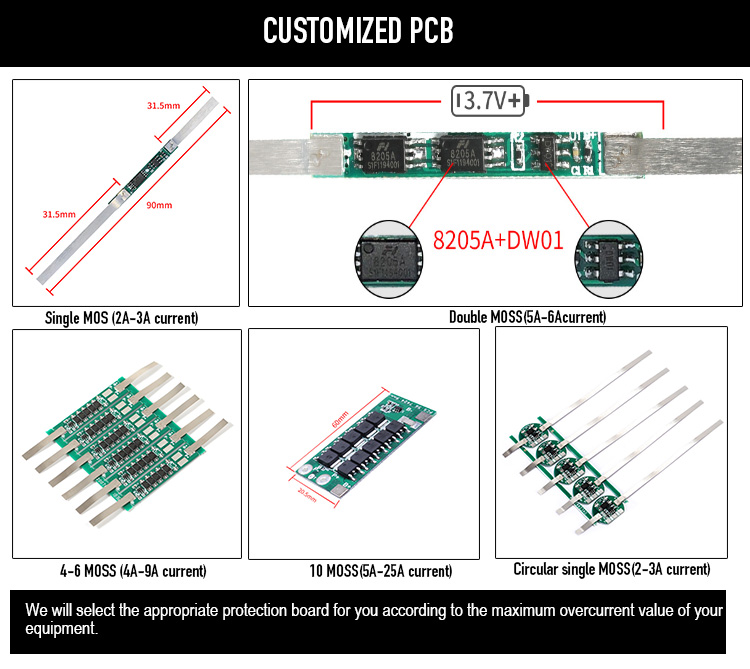

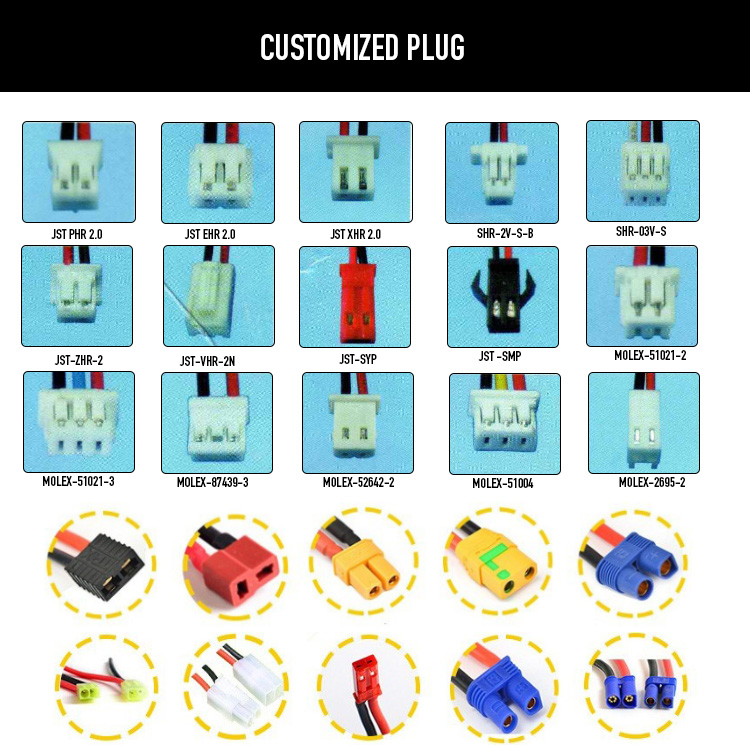

    Customizable PCM and connector, Wire length

    Get certificate:KC CB CE ROHS UL UN38.3 BIS

    Discharge cut-off voltage: 2.75V

    Maximum charging voltage: 4.2V

    Continuous work current:240mA(0.2C)

    Maximum charge current:600mA(0.5C)1C Can be customized

    Working temperature (discharge):-10℃-60℃

    Working temperature (charging):0℃-45℃


    APPLICATION

    1) Electronic cigarette

    2) Bluetooth device

    3) MP3/MP4

    4) GPS tracker

    5) Smart wearable equipment

    6) Beauty Instrument

    7)DVD paly


    OUR ADVANTAGE:

    1) 12 Years + experience in lithium battery production and research and development;

    2) 25 A level lithium battery R&D engineers;

    3) We pay more attention to environmental protection and safety performance of lithium batteries, all products meet ROHS standards, safe and non-explosive;

    4) We pay more attention to product quality and customer service. After we receive the consultation at any time, we will reply to our customers within 48 hours.





    FAQ

    Q1: Can I get free sample?

    A1: Generally we don't provide free sample, but we can return sample cost when the buyer place the bulk order.


    Q2: What is delivery time if we place an order?

    A2: It’s depends on the order quantities. Usually, we can deliver goods within 3 -5 working days for small orders. For bulk order, let's confirm when you place official order.


    Q3: What’s your payment and delivery terms?

    A3: Payment terms: By T/T, 30% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal.


    Q4: What company will be used for making the shipments? DHL? UPS or others?

    A4:Normally, we ship our battery via DHL,UPS and FedEx.


    Q5: What is your package looks like? Can I have the customized package?

    A5: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.


    Q6: Are your factory or trading company?

    A6: We are professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients all around the world.


    Q7: Where are your company's major markets?

    A7: Our company focus on high quality batteries in North Amercia, Europe, Korea and Japan markets.


    Q8:What’s your advantage compared with other suppliers?

    A8 a) High quality batteries: Our batteries are in enough capacity, and lower in RI,

    Before shipment, we will inspect the products and ensure the quality which are well approved by our clients.

    b)Better service: We always offer what our clients need. Reply client’s questions in time. Supply best projects solution for clients. We ship out the products on time.


    Q9: Can we visit your factory before placing an order?

    A9: Of course, no problem, we are always welcome to visit the factory.
