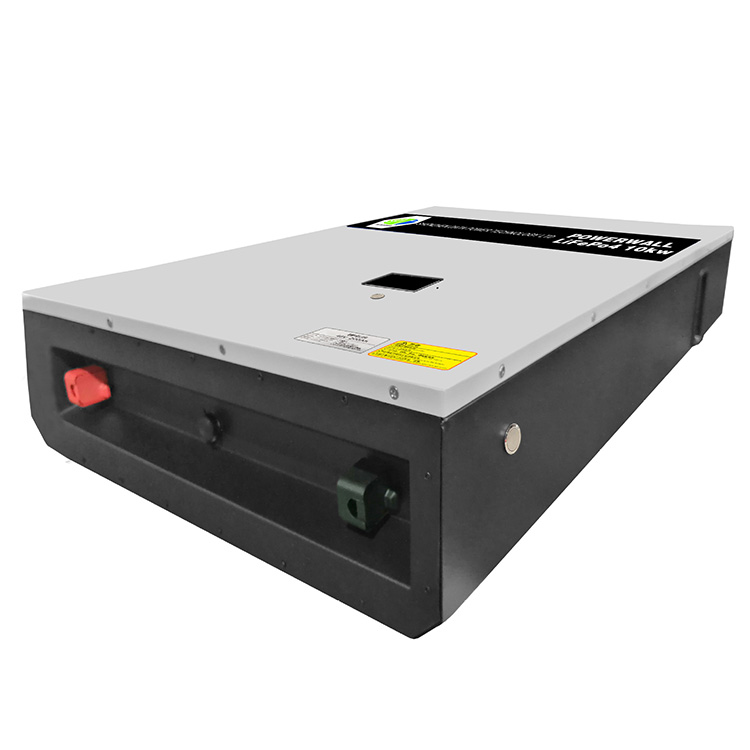

48V 200Ah 10KWh Powerwall Lifepo4 Lithium Ion Iron Phosphate Battery for Home Solar Energy System
48V 100Ah 200Ah 10KWh Powerwall Lifepo4 Lithium Ion Iron Phosphate Battery for Home Solar Energy System

48V 200Ah 10KWh Powerwall Lifepo4 Lithium Ion Iron Phosphate Battery for Home Solar Energy System

  • Product Details
  • 10kw 15kw powerwall 48v 200ah lithium battery for solar energy system

    Specification
    No.
    Item
    General Parameter
    Remark
    1
    Model
    LFP-48V200AH
    2
    Nominal Capacity
    200Ah
    3
    Nominal Voltage
    51.2V
    Mean Operation Voltage
    4
    Weight
    ≤85Kg
    5
    Dimension
    850*460*200 mm
    6
    Charge
    Max Continuous Charge Current 30A

    Maximum Charge Current 50A

    Charge Voltage 58.4V
    Charge time : Approx 7.5h
    7
    Discharge
    Continuous Discharge Current 50A

    Maximum Instantaneous Discharge Current 100A

    Discharge Cut-off Voltage 40V
    8
    Operation Temperature
    Charge Temperature 0~55℃

    Discharge Temperature-20~60℃
    9
    Capacity Retention
    (Storage 1 month)
    ≥90%
    10
    Over Charge Protection Voltage
    3.65V±25mV


    Based on single section
    11
    Over Charge Recovery Voltage
    3.6V±25mV
    12
    Over Discharge Protection Voltage
    2.2V±25mV
    13
    Over Discharge Recovery Voltage
    2.3V±25mV
    14
    Over Current Protection Current
    200A
    17
    Temperature Protection
    High Temperature 65℃

    Low Temperature -30℃



    * >4000 Cycles at 80%DOD

    * Auto-Balancing BMS * Managemen
    * Cell Type: LiFEPO4 Prismatic @ 100Ah /pcs
    ◆ Preferred supply high-quality batteries, Exceptional voltage stability ◆ >4000 Cycles at 80% depth of discharge to ensure long
    cycle life ◆ Rugged mechanical design with Modular design or laser spot welding to group
    ◆ Suitable for high-power power products
    ◆ Automatic system cell Charging balancing, Maintenance-free & No hydrogen generation or gassing
    ◆ Direct replacement for lead-acid batteries, <70% the weight of similarly sized SLA batteries
    ◆ Support fast charging & 100% deep cycle
    ◆ High discharge rate, sustainable discharge 300A @ 3~5 second
    ◆ Low power consumption design, long time standby
    ◆ Smart LCD Auto-Display Module for Capacity Rate and Voltage / Temperature display
    ◆ BMS powerful intelligent protection function and automatic short circuit & activation protection function
    ◆ IP56 water and dust resistant Group 31 case
    ◆ Stainless steel outer box-compression resistant, shock resistant, durable
    ◆ Environmentally friendly design and quality assurance in compliance with RoHS MSDS UN38 UL CB requirements
    ◆ Stock / Customize available for quick delivery in the US /UK / DE / FR or worldwide4
